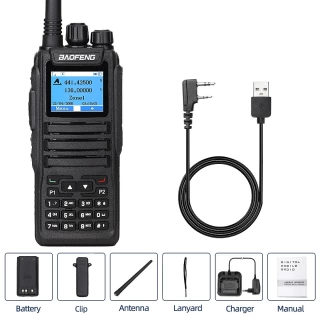

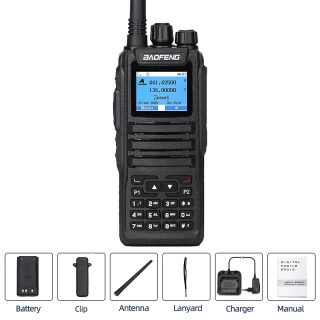

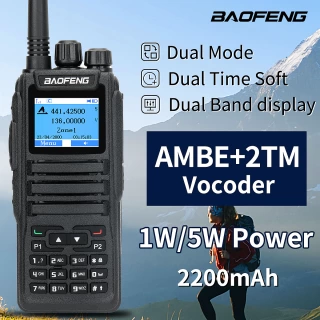

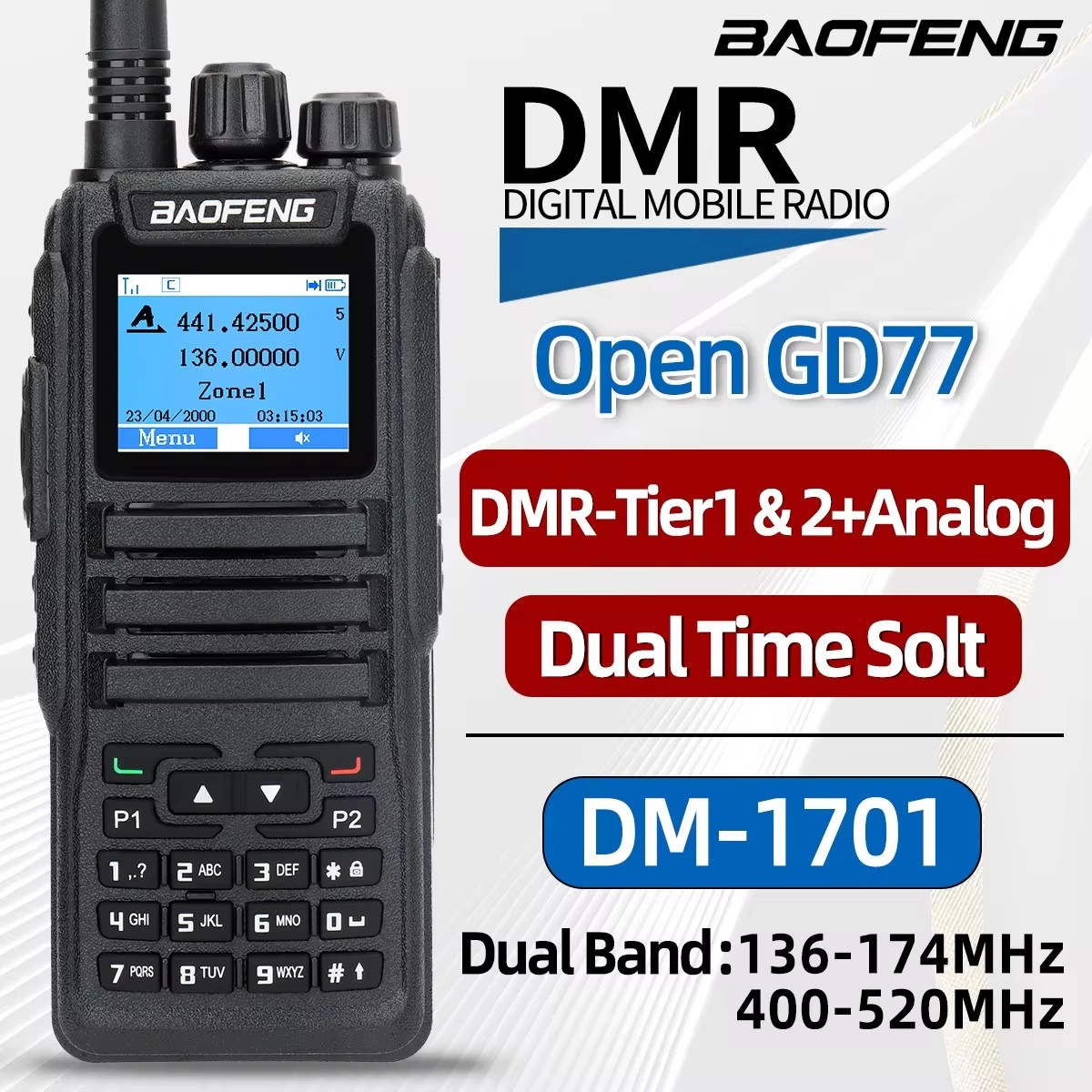

Baofeng DMR DM 1701 Digital Walkie Talkie Dual Mode Analog Two Way Radio
$66.99
$93.78
Out of stock
Description
✧[Digital & Analog Compatible]The DM-1701 is compatible with digital and analog modes, including dual band VHF/UHF coverage of 136-174 MHz and 400-520 MHz. It has up to 3,000 Channels, 10,000 Digital Talk Groups and 120,000 Contacts.
✧[Multi-Function & 1.77 "color TFT Display]- The DM-1701 offers to scan analog and digital channels, manual programming, DTMF, VFO, SMS, emergency alarm, digital monitor mode, CTCSS and CDCSS, color codes and DMR encryption. There are 5 customized keys for faster access to those features.

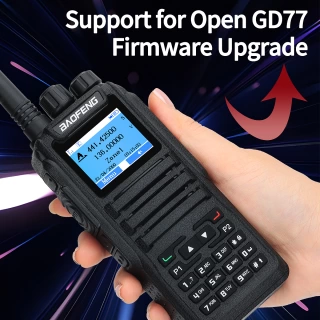

✧[Updated Software & Firmware Support]- The DM-1701 CPS supports mass editing, users can make complex application requirements, which makes it easier to write codeplugs. Firmware and software upgrading for new functions are life-time-free.
✧[DMO True 2 time slot]- Direct mode dual slot communication achieves two groups of calls at a frequency point at the same time so that the communication efficiency is doubled and frequency resources are saved. Compatible with MOTOTRBO Tier I & II and other DMR radios.
Specifications:
General
Frequency Range
Dual Band VHF 136-174MHz & UHF 400-470MHz
Storage channel
128groups
Maximum deviation
≤ Wont be 5 kHz/≤ wont be 2.5 kHz (W/n)
Operating Voltage
DC 7.4V
Frequency Stability
±2.5ppm
Operating Temperature
-20~+60℃
Channel Spacing
25KHz(Wide),12.5K(Narrow)
Antenna Impedance
50Ω
Battery Capacity
2200mAh

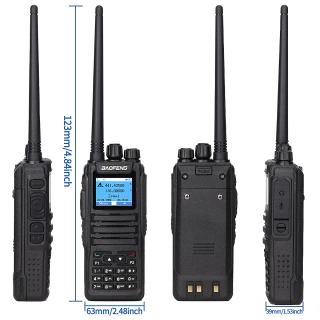

Dimensions
133 ×62 ×32mm(Antenna Not included)
Transmitting
Output Power
1W/5W
Modulation (wide band/ Narrow band)
Analog:16K Φ F3E/11K Φ F3E
Maximum frequency Deviation (wide band/ Narrow band)
